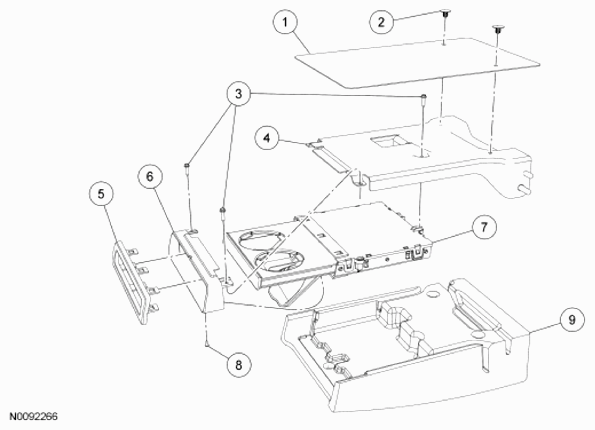

Seat Armrest - 60 Percent
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
63804 |
Shield |
| 2 |
N803678 |
Shield retainer (2 required) |
| 3 |
W506824 |
Cupholder screws (3 required) |
| 4 |
67336 |
Armrest frame |
| 5 |
7E391 |
Cupholder bezel cover |
| 6 |
67336 |
Cupholder bezel |
| 7 |
13562 |
Cupholder |
| 8 |
W506824 |
Cupholder bezel screw |
| 9 |
60508/67273 |
Armrest cover/foam pad |
