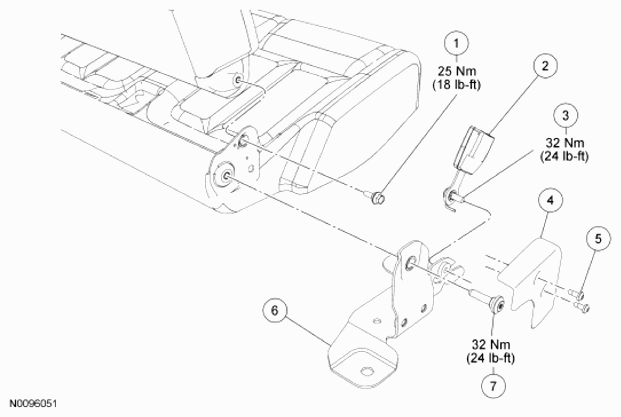

Inboard Cushion Latch - 60 Percent
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
W714769 |
Backrest pivot bolt |
| 2 |
60045 |
Safety belt buckle |
| 3 |
- |
Safety belt buckle bolt (part of 60045) |
| 4 |
61350 |
Inboard side shield |
| 5 |
W504752 |
Side shield screw (2 required) |
| 6 |
62526 |
Inboard riser |
| 7 |
W713205 |
Cushion pivot bolt |
