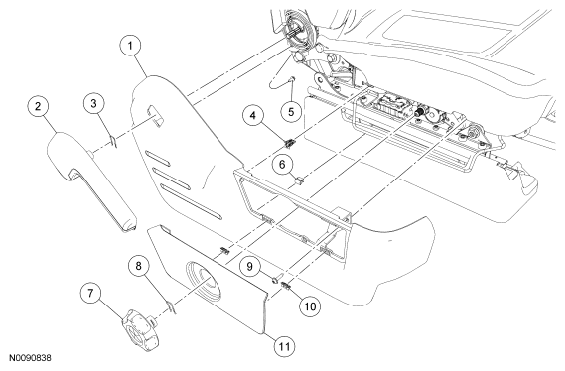

Seat Side Shield - Manual Seat Track With Manual Lumbar, Super Cab
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RH shown, LH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 62186 | Side shield |
| 2 | 62622 | Recliner handle |
| 3 | - | Recliner handle retainer |
| 4 | W711045 | Side shield retainer |
| 5 | - | Side shield screw, rear |
| 6 | W713010 | Side shield retainer, Z-clip |
| 7 | 61199 | Adjustable lumbar knob |
| 8 | - | Adjustable lumbar knob retainer |
| 9 | - | Side shield screw, front |
| 10 | W712973 | Side shield insert retainer (2 required) |
| 11 | 14A076 | Side shield insert |
