Head Restraint Guide Sleeve: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Typical head restraint guide sleeve shown, others similar.

Push in on the 2 head restraint guide sleeve release buttons and remove the head restraint.
Obtain a flat-head screwdriver with a width of 4 mm (0.157 in) to 7 mm (0.275 in) and a thickness of approximately 1 mm (0.039 in).
Align the screwdriver to the middle of the head restraint guide sleeve release button.

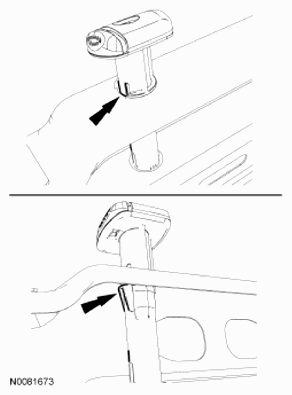

Fig 1: Disengaging Head Restraint Guide Sleeve From Backrest Frame Crossmember
Courtesy of FORD MOTOR CO.
Position the screwdriver between the head restraint guide sleeve neck, backrest cover and foam pad.

Fig 2: Positioning Screwdriver Between Head Restraint Guide Sleeve Neck, Backrest Cover And Foam Pad
Courtesy of FORD MOTOR CO.
Position the screwdriver at a 45-degree angle.

Fig 3: Positioning Screwdriver At 45-Degree
Courtesy of FORD MOTOR CO.
NOTE: For retainer clarity, backrest cover and foam pad are omitted.

Push in the screwdriver, bending the lock feature on the head restraint guide sleeve in.

Fig 4: Locating Head Restraint Guide Sleeve
Courtesy of FORD MOTOR CO.
While bending the lock feature in, push down on the screwdriver handle, prying the head restraint guide sleeve up and disengaging it from the backrest frame crossmember.

Fig 5: Prying Head Restraint Guide Sleeve Using Tool
Courtesy of FORD MOTOR CO.
Remove the head restraint guide sleeve.
- Discard the head restraint guide sleeve.
Repeat these steps for the head restraint guide sleeve on the opposite side.
