Front Seat Motor Cable: Removal
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Wear protective gloves when handling components or parts that have pointed or sharp edges. Failure to follow this instruction may result in serious personal injury.
NOTE:
Typical driver seat shown, others similar.
- Remove the seat. Refer to SEAT - FRONT .
- If equipped.
- If equipped.

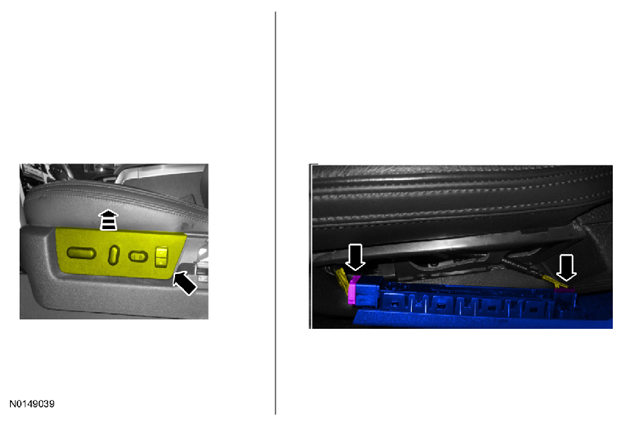

- Remove the screws and side shield.
