Front Seat Motor Cable: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The front seat motor cable service part for the driver seat is different than the service part for passenger seat. Make sure to install the correct service part required for the seat.

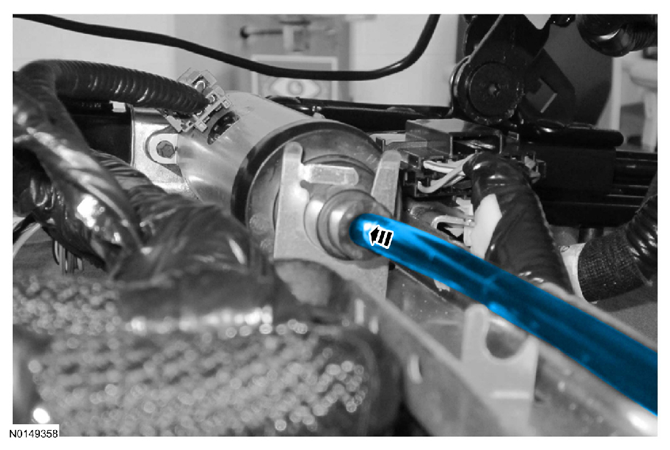

  1. G08344017
  2. NOTE: The cable felt covering should not be visible when the cable is correctly engaged to the horizontal motor square drive.
    • Push the cable into the horizontal motor square drive twisting back and forth to engage the cable.

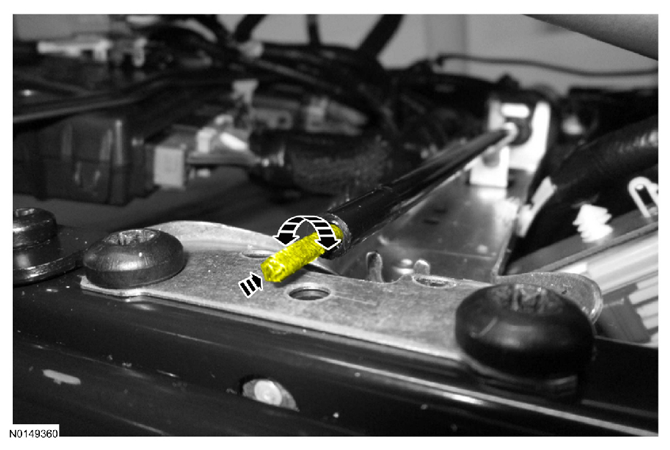

      G08344018

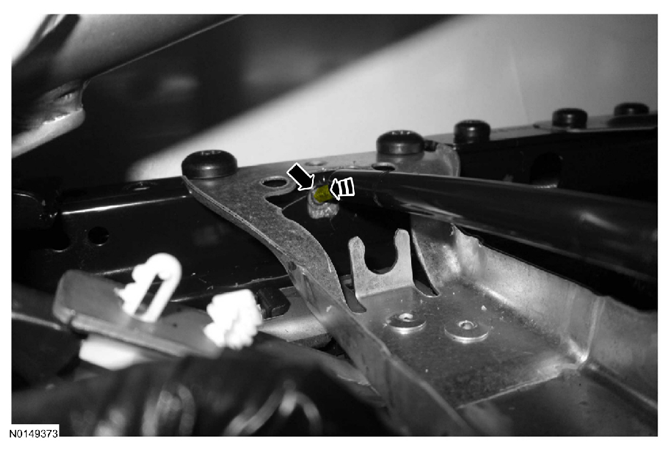

  3. G08344019

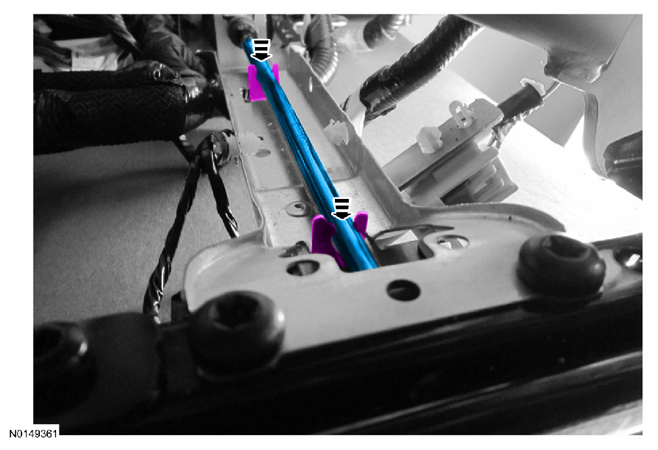

  4. G08344020
  5. Install the side shield and screws.
    G08344015
  6. If equipped.
    G08344022
  7. If equipped.
    G08344013
  8. Install the front seat. Refer to SEAT - FRONT .
