Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RH and LH A-pillar trim panels. For additional information, refer to A-PILLAR TRIM PANEL .
Remove the RH and LH B-pillar trim panels. For additional information, refer to B-PILLAR TRIM PANEL - REGULAR CAB .
Remove the RH and LH sun visor screws and the sun visors.
- If equipped, disconnect the electrical connectors.

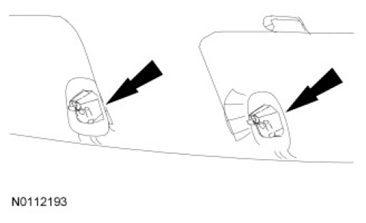

  Fig 1: Locating RH And LH Sun Visor Screws
  Courtesy of FORD MOTOR CO.
Remove the RH and LH sun visor retaining clips.
- Remove the sun visor retaining clip screws.

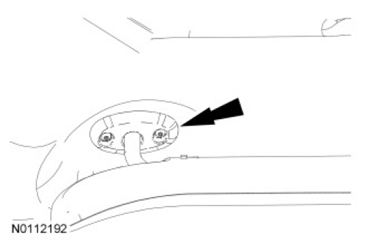

  Fig 2: Locating RH And LH Sun Visor Retaining Clips
  Courtesy of FORD MOTOR CO.
Disconnect the headliner electrical connector located behind the upper B-pillar trim panel.
Fully recline the front seat backs.
Remove the RH and LH garment hooks.
- Open the garment hook screw covers.
- Remove the garment hook screws.

NOTE: Make sure not to crease the headliner when removing it from the vehicle.

With an assistant, remove the headliner through the door opening.
To install, reverse the removal procedure.
