Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear center safety belt retractor. For additional information, refer to SAFETY BELT SYSTEM .
  2. Remove the RH and LH C-pillar trim panels. For additional information, refer to C-PILLAR TRIM PANEL - CREW CAB .
  3. Remove the 2 cab rear trim panel pushpin retainers.

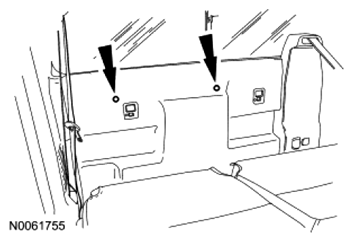

    Fig 1: Locating Cab Rear Trim Panel Pushpin Retainers
    G06779591Courtesy of FORD MOTOR CO.
  4. Remove the cab rear trim panel.
  5. To install, reverse the removal procedure.
