Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Left side shown in illustration, right side similar.

NOTE: To avoid damage to the scuff plate trim panel, remove any retaining clips from the body and attach them to the scuff plate trim panel before installing.

Remove the rear door opening scuff plate trim panel.
- Lift the door opening scuff plate trim panel upward to release the retaining clips.

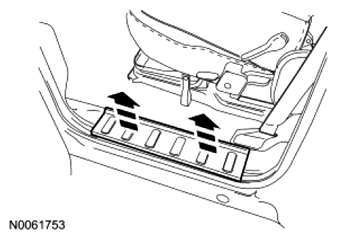

  Fig 1: Removing Rear Door Opening Scuff Plate Trim Panel
  Courtesy of FORD MOTOR CO.
Fold the rear seat backrests down.
Pull out and remove the shoulder safety belt guide cover.

NOTE: Inspect the shoulder safety belt guide and cover for damage. If the shoulder safety belt guide or cover is damaged, install a new shoulder safety belt guide or cover.

Remove the shoulder safety belt guide.
1. Remove the shoulder safety belt guide bolt.
  - To install, tighten to 40 Nm (30 lb-ft).
2. Remove the shoulder safety belt guide.

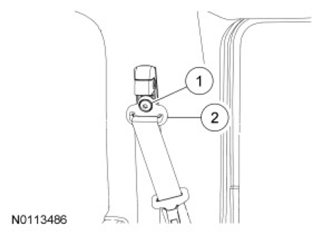

  Fig 2: Identifying Shoulder Safety Belt Guide
  Courtesy of FORD MOTOR CO.
Position the rear door opening weatherstrips aside.
Remove the safety belt anchor.
- Remove the safety belt anchor bolt.
  - To install, tighten to 40 Nm (30 lb-ft).
- Remove the safety belt anchor.

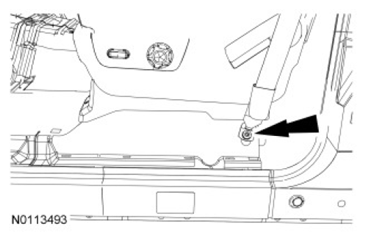

  Fig 3: Locating Safety Belt Anchor
  Courtesy of FORD MOTOR CO.

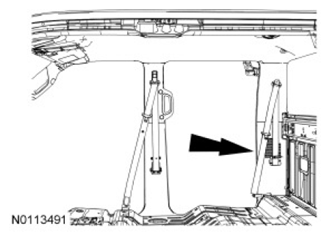

Remove the lower C-pillar trim panel.
- Route the safety belt and the shoulder safety belt guide through the C-pillar trim panel opening.

  Fig 4: Locating Lower C-Pillar Trim Panel
  Courtesy of FORD MOTOR CO.
Remove the upper C-pillar trim panel.

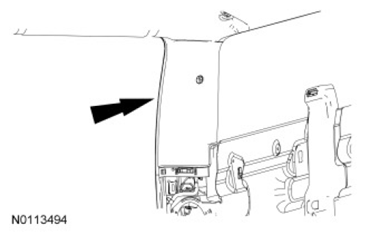

Fig 5: Locating Upper C-Pillar Trim Panel
Courtesy of FORD MOTOR CO.

NOTE: To avoid damage to the C-pillar trim panel, remove any retaining clips from the body and attach them to the C-pillar trim panel before installing.

To install, reverse the removal procedure.
