Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with floor console

  1. Open the floor console stowage bin door.
    G08342552

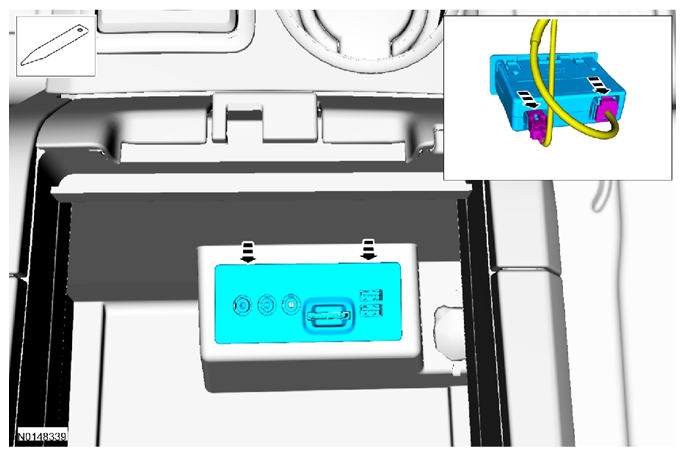

  2. Remove the media hub.
    • Disconnect the electrical connectors.
      G08342652

    Vehicles without floor console

  3. Open the lower instrument panel door.
    G08342538

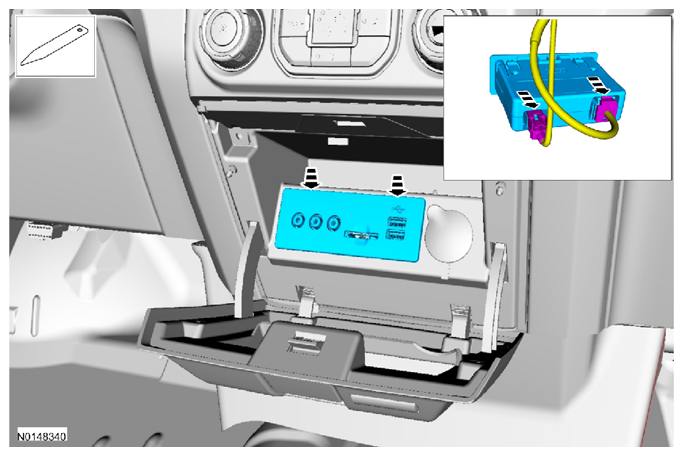

  4. Remove the media hub.
    • Disconnect the electrical connectors.
      G08342654

    All vehicles

  5. To install, reverse the removal procedure.
