Section 594 (Information System And Entertainment System - SONY 8-Inch Touchscreen)
>>
Description And Operation
>>
Information and Entertainment System
>>
System Operation
>>

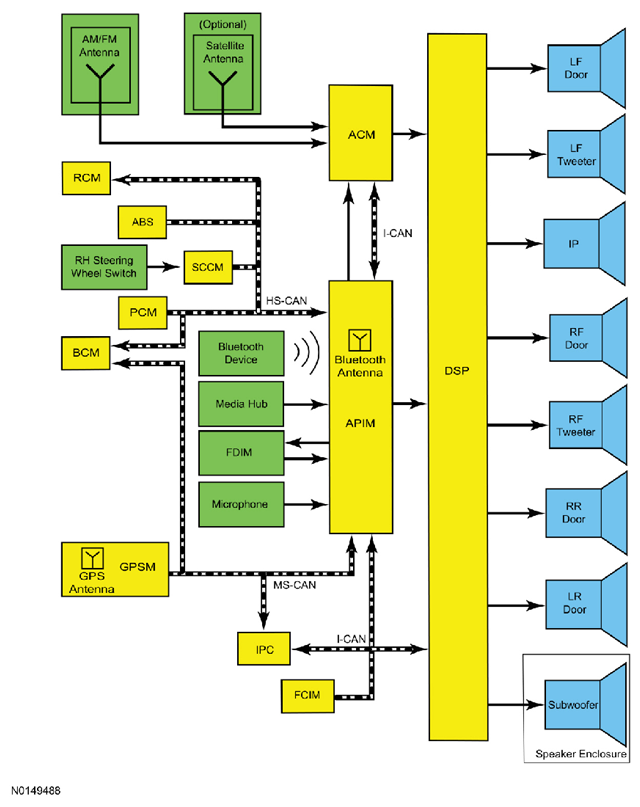

System Diagram
System Diagram
WARNING:
This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
