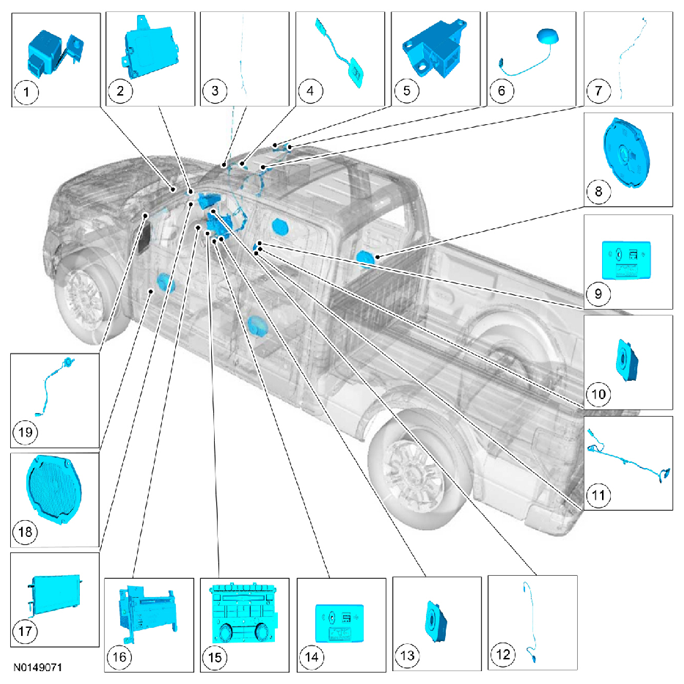

Component Location
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Description | Comments |
|---|---|---|
| 1 | GPSM | Located in the top center area of the instrument panel (if equipped) |
| 2 | APIM | Located in the top center area of the instrument panel (if equipped) |
| 3 | AM/FM antenna and AM/FM antenna coaxial cable | - |
| 4 | SYNC® microphone | Located in the headliner (if equipped) |
| 5 | Compass module | Located in the headliner (if equipped) |
| 6 | Satellite radio antenna | If equipped |
| 7 | Satellite radio antenna coaxial cable | If equipped |
| 8 | Rear door speaker | - |
| 9 | Audio input jack and USB port | Located in the console (with front captain chairs) |
| 10 | Audio input jack | Located in the console (with front captain chairs) |
| 11 | USB cable | Located in the console (with front captain chairs) |
| 12 | USB cable | Located in the instrument panel (with split bench) |
| 13 | Audio input jack | Located in the instrument panel (with split bench) |
| 14 | Audio input jack and USB port | Located in the instrument panel (with split bench) |
| 15 | FCIM | - |
| 16 | ACM | - |
| 17 | Non-touchscreen FDIM | - |
| 18 | Front door speaker | - |
| 19 | A-pillar speaker | LF shown, RF similar |
