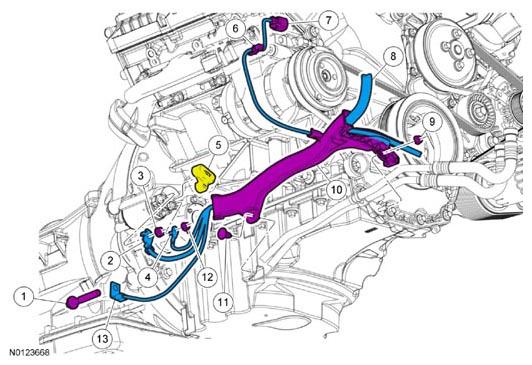

Battery Cable to Starter Motor Connections
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | W714290 | Battery cable engine ground terminal stud bolt - 47 Nm (35 lb-ft) |
| 2 | - | Starter solenoid positive cable terminal (part of 14300) |
| 3 | W706414 | Starter solenoid positive cable terminal nut - 12 Nm (106 lb-in) |
| 4 | - | Starter solenoid wire terminal (part of 14300) |
| 5 | 11N087 | Starter solenoid terminal cover |
| 6 | - | Battery cable wire harness retaining clip (part of 14300) |
| 7 | - | A/C compressor electrical connector (part of 14300) |
| 8 | 14300 | Battery cable |
| 9 | W520111 | Battery cable shield nut - 12 Nm (106 lb-in) |
| 10 | 14A099 | Battery cable shield |
| 11 | - | Battery cable shield pin-type retainer |
| 12 | W705790 | Starter solenoid wire terminal nut - 5 Nm (44 lb-in) |
| 13 | - | Battery cable engine ground terminal (part of 14300) |
