Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If installing a new HVAC module, the new module must be configured for the vehicle. For additional information, refer to MODULE CONFIGURATION .

With Electronic Automatic Temperature Control or Electronic Manual Temperature Control Remote Mount

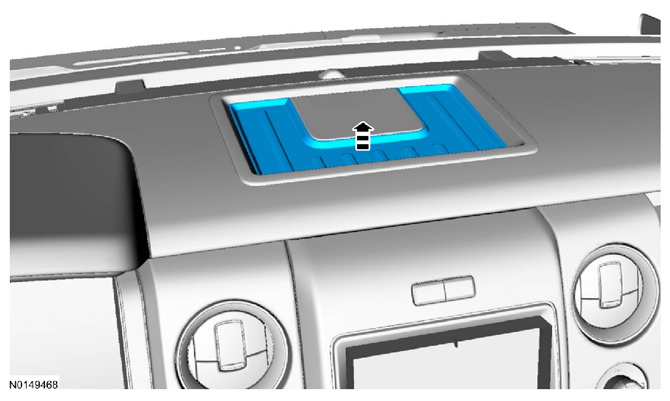

Remove the upper instrument panel storage tray mat.

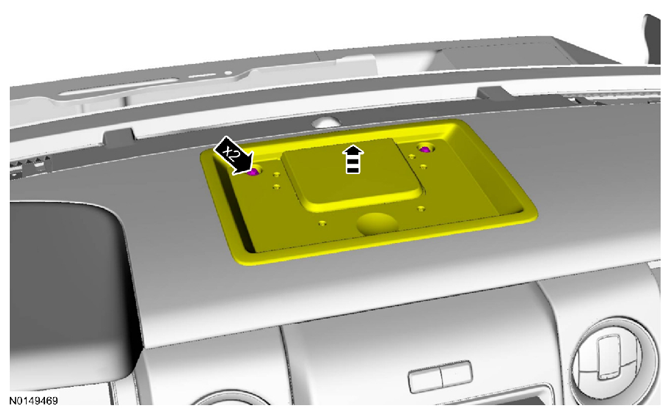

Remove the 2 upper instrument panel storage tray screws.

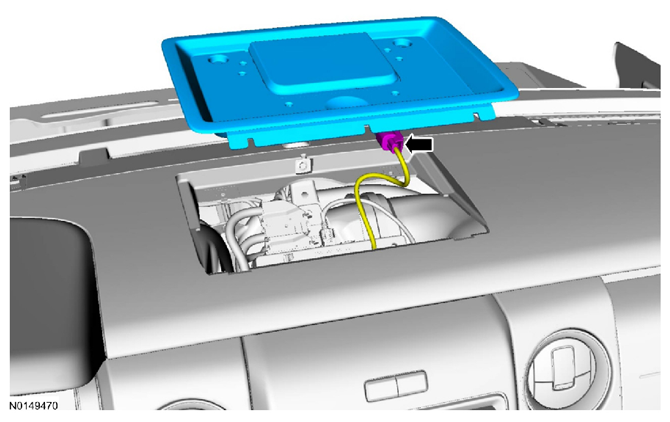

Disconnect the speaker electrical connector (if equipped), and remove the upper instrument panel storage tray.
Remove the HVAC module.

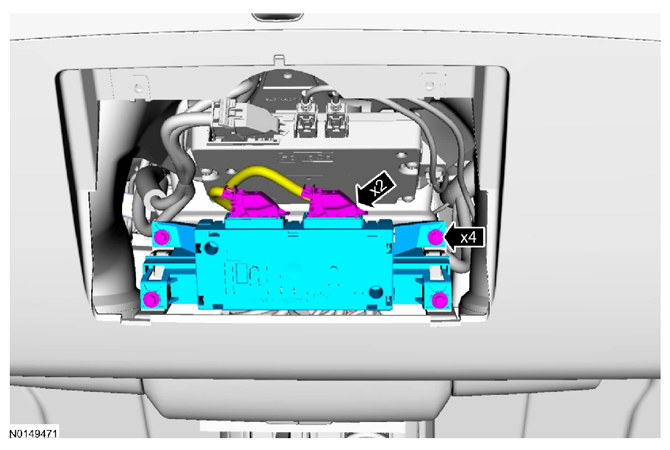

- Disconnect the HVAC module electrical connectors.
- Remove the 4 HVAC module screws.

  Vehicles with Electronic Manual Temperature Control Base
Remove the instrument panel finish panel - center, lower. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Remove the HVAC module.

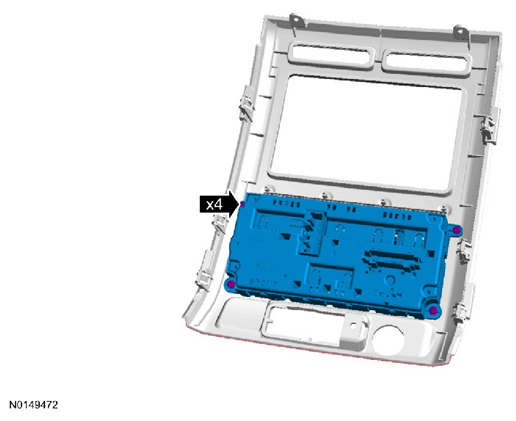

- Remove the 4 HVAC module screws.

  All vehicles
To install, reverse the removal procedure.
