Selector Lever Knob: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the Select Shift™ and the Tow/Haul electrical connectors and install the selector lever knob.

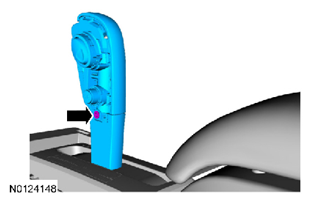

  2. Install a new LH selector lever knob screw.
    G08341254
  3. Install a new RH selector lever knob screw.
    G08341253

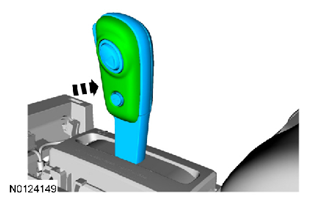

  4. Install a new LH selector lever knob cover.
    G08341257

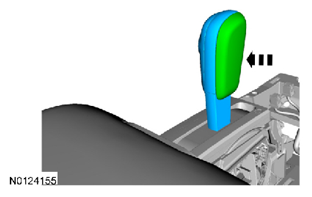

  5. Install a new RH selector lever knob cover.
    G08341258

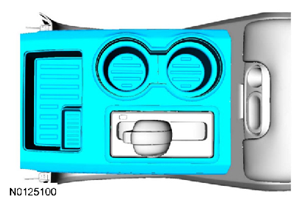

  6. Connect and install the floor console upper finish panel.
    G08341259
  7. Install the instrument panel to floor console finish panel.
    G08341262
