Selector Lever Bezel: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel to floor console finish panel.
    G08341262
  2. Remove the floor console upper finish panel.
    • Starting at the rear of the upper finish panel, carefully pry up the upper finish panel and disconnect the electrical connectors.
      G08341197
  3. Remove and discard the RH selector lever knob cover.
    1. Start at the bottom front.
    2. Move towards the top front and remove the cover.
      G08341251
  4. Remove and discard the LH selector lever knob cover.
    1. Start at the bottom front.
    2. Move towards the top front and remove the cover.
      G08341252
  5. Remove and discard the RH selector lever knob screw.
    G08341253
  6. Remove and discard the LH selector lever knob screw.
    G08341254
  7. Disconnect the select shift and the Tow/Haul electrical connectors and remove the selector lever knob.

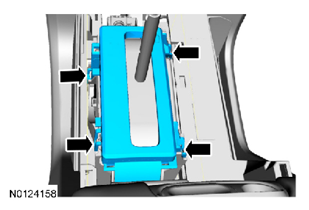

  8. Lift the tabs on the selector lever bezel and lift the bezel.
    G08341268

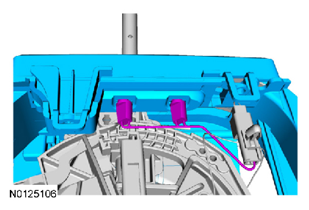

  9. Disconnect the electrical harness from the bezel and remove the selector lever bezel.
    G08341269
