Removal and Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the selector lever mechanism. For additional information, refer to SELECTOR LEVER MECHANISM - COLUMN SHIFT .

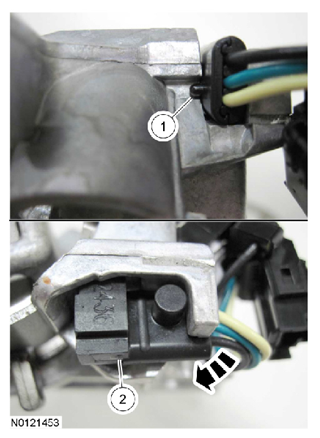

Remove the Brake Shift Interlock Actuator (BSIA) screw.
Remove the BSIA .
1. Gently pry out the clip.
2. While prying out the clip, simultaneously remove the BSIA from the selector lever mechanism housing.

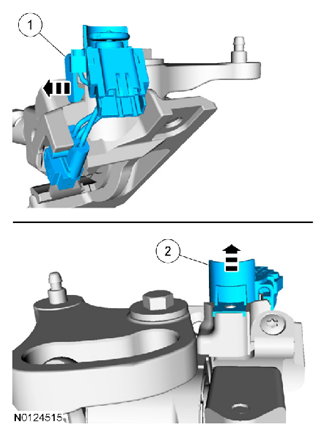

Remove the park position switch.
1. Press the spring loaded pin.
2. While pressing in on the spring loaded pin, rotate the park position switch clockwise and remove it from the selector lever mechanism.
