Transmission Fluid Cooler Tubes - 5.0L (4V), 6.2L (2V): Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. Route the transmission fluid cooler tubes and position them in place.

    4WD

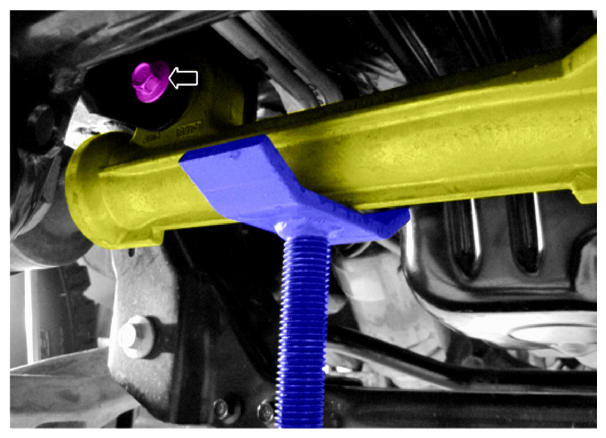

  2. Raise the right side of the front axle.
  3. Install the axle shaft housing carrier bushing bolt.
    • Tighten to 115 Nm (85 lb-ft).
      G09543897
  4. Install the upper front axle carrier mounting bushing bolt.
    • Tighten to 115 Nm (85 lb-ft).
      G07963094

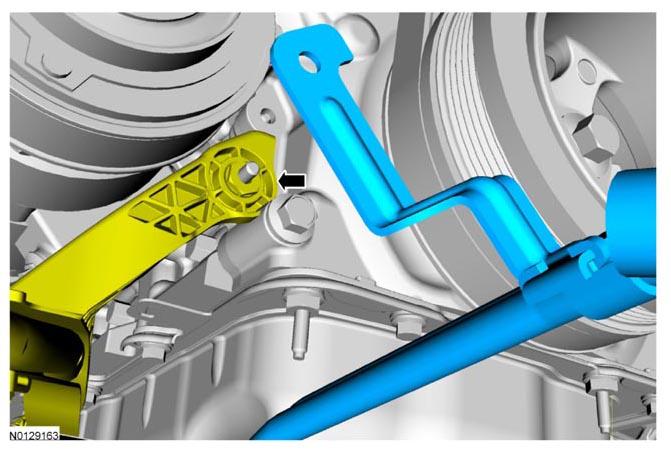

  5. Position the starter wiring harness to the front of the engine cover stud.
    G07963099

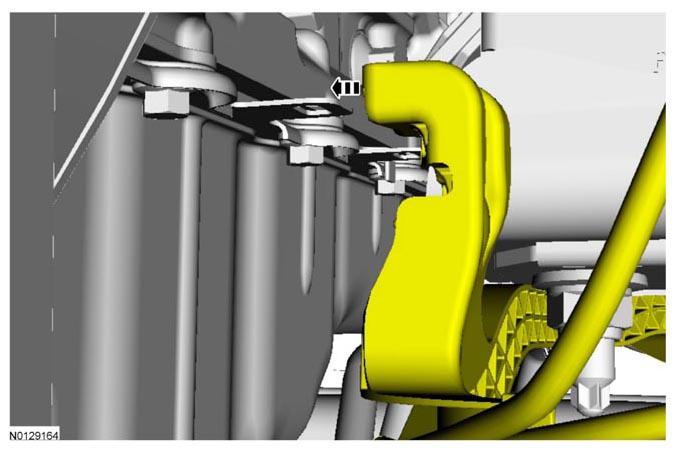

  6. Attach the starter wiring harness to the oil pan.
    G07963100
  7. Connect the starter motor ground cable eyelet and install the nut.
    • Tighten to 25 Nm (18 lb-ft).
      G07963091
  8. Connect the starter solenoid B-terminal eyelet and install the nut.
    • Tighten to 12 Nm (106 lb-in).
      G07963090
  9. Connect the starter solenoid S-terminal eyelet and install the nut.
    • Tighten to 5 Nm (44 lb-in).
      G07963089
  10. Install the terminal cover.
    G07963088

    All vehicles

    NOTE: Right side shown, left side similar.
  11. Position the sway bar in place and install 4 new nuts.
    • Tighten to 55 Nm (41 lb-ft).
      G07963087

    Raptor

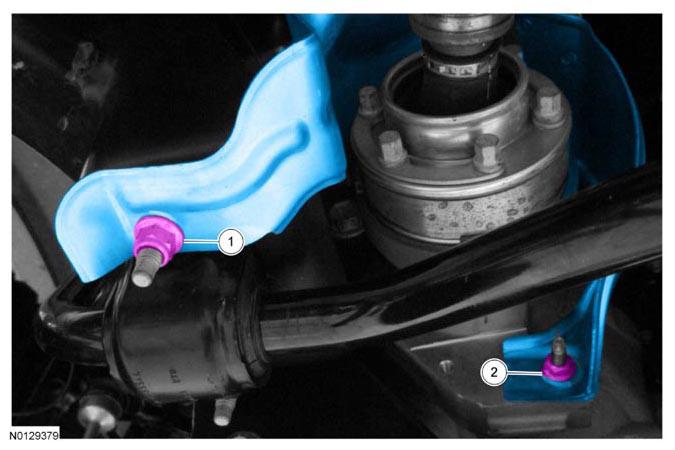

  12. Install the heat shield and the 2 nuts.
    1. Tighten to 48 Nm (35 lb-ft).
    2. Tighten to 23 Nm (17 lb-ft).
      G07963106

    All vehicles

  13. NOTE: Inspect the transmission case to make sure that the transmission fluid cooler tube O-rings did not remain in the transmission case. Carefully remove and discard them from the case if retained.

    Install 4 new O-rings on the transmission fluid cooler tubes.

    G07963062
  14. NOTE: Install a new transmission fluid cooler tubes-to-transmission bolt.

    Install the transmission fluid cooler tubes and a new transmission fluid cooler tubes-to-transmission bolt.

    • Tighten to 30 Nm (22 lb-ft).
      G07963061
  15. If equipped, install the selector lever cable splash shield and the nut.
    • Tighten to 12 Nm (106 lb-in).
      G07963060
  16. Install the transmission fluid cooler tube bracket and the transmission-to-engine bolt.
    • Tighten to 48 Nm (35 lb-ft).
      G07963082

    5.0L (4V)

  17. Install the transmission fluid cooler tube bracket and the nut to the front of the engine.
    • Tighten to 12 Nm (106 lb-in).
      G07963081

      6.2L (2V)

  18. Install the transmission fluid cooler tube bracket and the nut to the front of the engine.
    • Tighten to 40 Nm (30 lb-ft).
      G07963081

    All vehicles

  19. Connect the transmission fluid cooler tubes to the transmission fluid cooler hoses.
    G07963068
  20. Install the transmission fluid cooler tube secondary latches.
    G07963056

    4WD

  21. Install the rearward skid plate and the 4 bolts.
    • Tighten to 48 Nm (35 lb-ft).
      G07963078
  22. If equipped, install the forward skid plate and the 6 bolts.
    • Tighten to 48 Nm (35 lb-ft).
      G07963077
  23. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

    All vehicles

  24. Fill the transmission with fluid and verify correct operation. For additional information, refer to Transmission Fluid Level Check in AUTOMATIC TRANSAXLE/TRANSMISSION - 6R80 .
  25. Check for leaks.
