3.5L GTDI and 3.7L Transmission Fluid Cooler Tubes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

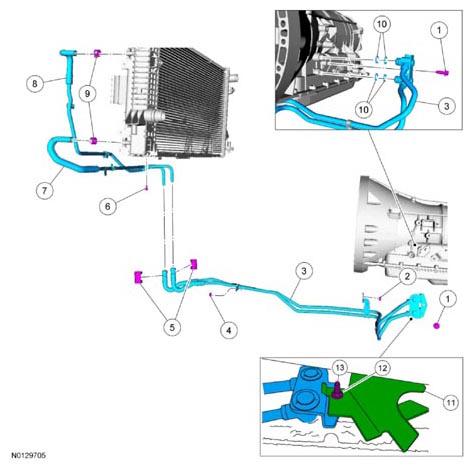

| Item | Part Number | Description |
|---|---|---|
| 1 | W715131 | Transmission fluid cooler tubes-to-transmission bolt |
| 2 | W709450 | Transmission fluid cooler tube bracket nut |
| 3 | 7R081 | Transmission fluid cooler inlet and outlet tubes |
| 4 | W709450 | Transmission fluid cooler tube bracket-to-front of engine nut |
| 5 | 7Z465 | Transmission fluid cooler inlet and outlet tube secondary latches |
| 6 | W500212 | Transmission fluid cooler tube bracket bolt |
| 7 | 7B028 | In-tank transmission fluid cooler inlet tube |
| 8 | 7B028 | In-tank transmission fluid cooler outlet tube |
| 9 | 7C107 | Transmission fluid cooler hose clamps |
| 10 | 7J227 | Transmission fluid cooler tube O-rings (4 required) |
| 11 | 7B147 | Selector lever cable splash shield (if equipped) |
| 12 | W520111 | Selector lever cable splash shield nut |
| 13 | W715798 | Transmission fluid cooler tubes-to-transmission bolt (with selector lever cable splash shield) |
