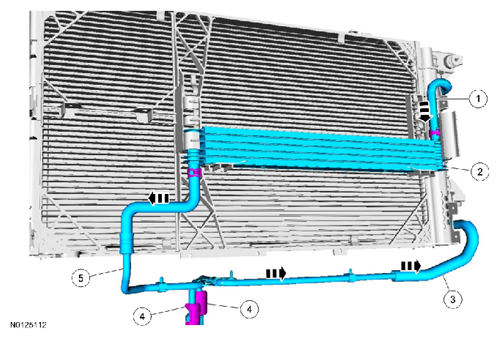

3.5L GTDI, 3.7L and 5.0L Engines With an Auxiliary Transmission Fluid Cooler
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 7C410 | Auxiliary transmission fluid cooler inlet hose |
| 2 | 7A095 | Auxiliary transmission fluid cooler |
| 3 | 7B028 | In-tank transmission fluid cooler inlet tube |
| 4 | 7Z465 | Transmission fluid cooler inlet and outlet tube secondary latches |
| 5 | 7B028 | Auxiliary transmission fluid cooler outlet hose |
