Wheel Speed Sensor Ring - Rear, Four-Channel: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear wheel hub. For additional information, refer to WHEEL HUBS AND BEARINGS - FULL FLOATING AXLE - FORD .
  2. Using the Step Plate and the 2 or 3 Jaw Puller, remove the wheel speed sensor ring.

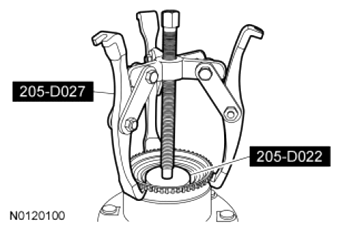

    Fig 1: Removing Wheel Speed Sensor Ring
    G07479199Courtesy of FORD MOTOR CO.
  3. Clean any dirt or foreign material from the wheel speed sensor ring contact area on the wheel hub.
