Wheel Speed Sensor Ring - Rear, Four-Channel: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

SPECIAL TOOLS CHART

	Step Plate 205-DS022 (D80L-630-A) or equivalent (part of 205-DS011)
	2 or 3 Jaw Puller 205-D027 (D80L-1013-A) or equivalent

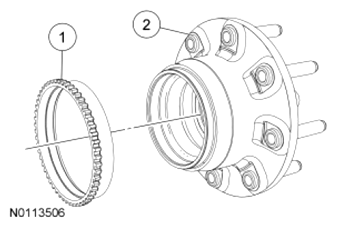

Fig 1: Identifying Wheel Speed Sensor Ring And Rear Wheel Hub

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2C189	Wheel speed sensor ring
2	1109	Rear wheel hub
