Wheel Speed Sensor - Rear, Three-Channel: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

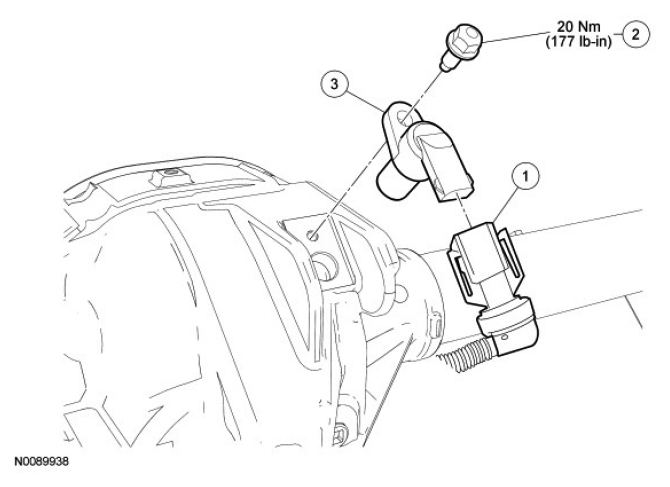

Fig 1: Wheel Speed Sensor Electrical Connector And Rear Wheel Speed Sensor Bolt With Torque Specifications
G06762790Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Wheel speed sensor electrical connector
2 - Rear wheel speed sensor bolt (part of 2C204)
3 2C204 Rear wheel speed sensor
