Anti-Lock Brake System (ABS) Module: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Vehicle Communication Module (VCM) and Integrated Diagnostic System (IDS) software with appropriate hardware, or equivalent scan tool |

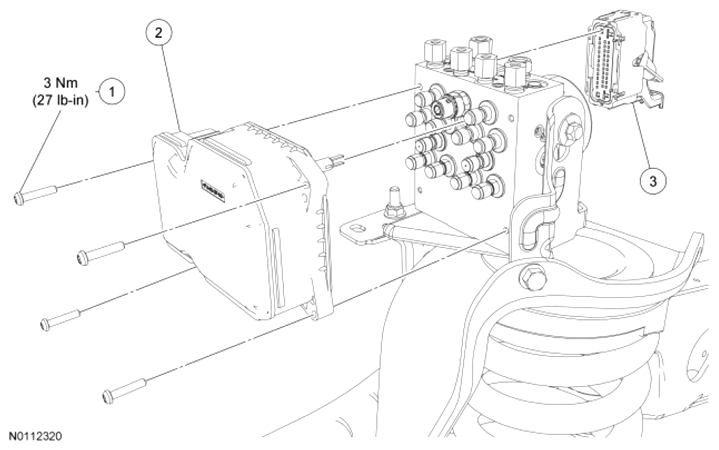

| Item | Part Number | Description |
|---|---|---|
| 1 | - | ABS module screw (part of 2C219) (4 required) |
| 2 | 2C219 | ABS module |
| 3 | - | ABS module electrical connector (part of 14405) |
