Turbocharger Boost Pressure (TCBP)/Charge Air Cooler Temperature (CACT) Sensor - 3.5L GTDI: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

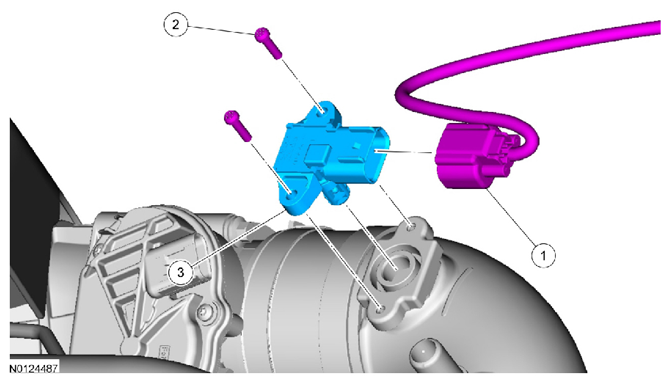

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Turbocharger Boost Pressure (TCBP)/Charge Air Cooler Temperature (CACT) sensor electrical connector (part of 12A581) |
| 2 | W506843 | TCBP /CACT sensor screws - 3 Nm (27 lb-in) |
| 3 | 9F479 | TCBP /CACT sensor |
