Fuel Rail Pressure (FRP) Sensor - 3.5L GTDI: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

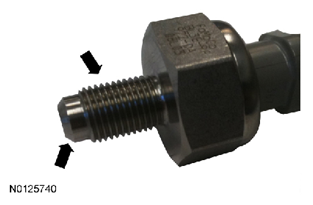

  1. Lubricate the tip and thread area of the new FRP  sensor with clean engine oil prior to installation.
    G08340311
  2. NOTE: During repair procedure, cleanliness is extremely important. Any foreign material, including any material created while cleaning or removing components that enters the fuel supply passages may cause engine failure.

    Install the FRP  sensor.

    • To install, tighten to 33 Nm (24 lb-ft).
  3. Connect the FRP  sensor electrical connector.
  4. Install the intake manifold. For additional information, refer to ENGINE - 3.5L GTDI .
  5. Connect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
