Throttle Body: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

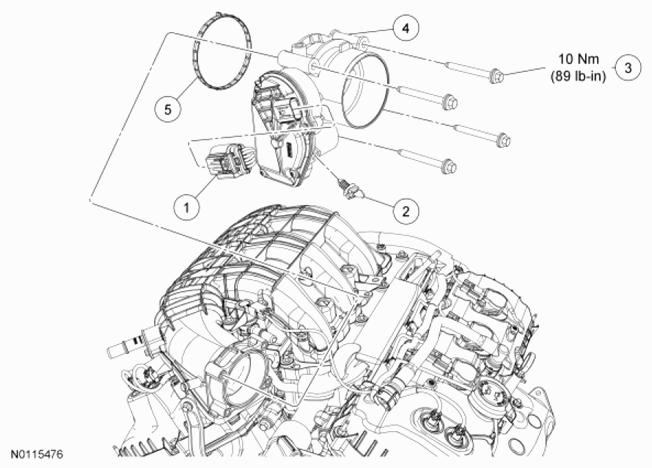

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Electronic throttle control electrical connector (part of 14A411) |
| 2 | - | Electronic throttle control electrical connector wiring harness pin-type retainer (part of 14A411) |
| 3 | W713443 | Throttle Body (TB) bolt (4 required) |
| 4 | 9F991 | TB |
| 5 | 9E936 | TB gasket |
