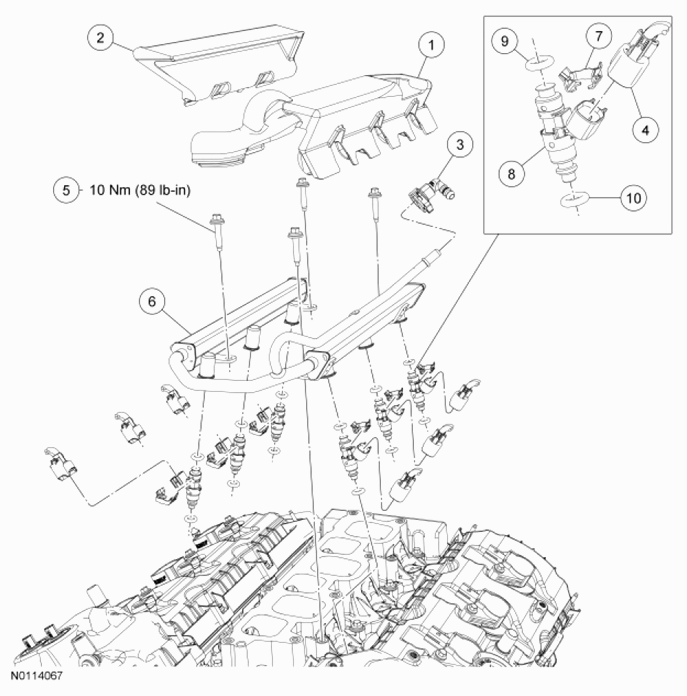

Fuel Rail and Fuel Injector - Exploded View
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
| Item | Part Number | Description |
|---|---|---|
| 1 | 6P013 | LH fuel rail noise insulator shield |
| 2 | 6P013 | RH fuel rail noise insulator shield |
| 3 | - | Fuel tube-to-fuel rail quick connect coupling (part of 9J280) |
| 4 | - | Fuel injector electrical connector (part of 14A411) (6 required) |
| 5 | W503279 | Fuel rail bolt (4 required) |
| 6 | 9F792 | Fuel rail |
| 7 | 9C995 | Fuel injector clip (6 required) |
| 8 | 9F593 | Fuel injector (6 required) |
| 9 | 9229 | Upper fuel injector O-ring seal (6 required) |
| 10 | 9229 | Lower fuel injector O-ring seal (6 required) |
- Refer to the procedures and/or exploded views in this article for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
