Fuel Pump Control Module: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

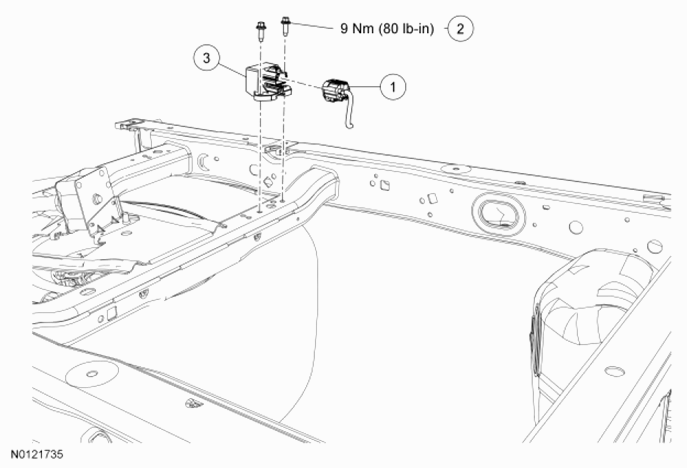

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel Pump Control Module (FPCM) electrical connector (part of 14405) |
| 2 | W705549 | FPCM bolt (2 required) |
| 3 | 9D370 | FPCM |
