Removal And Installation: Radiator: Removal

All engines

1. Recover the A/C system. For additional information, refer to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
2. Drain the cooling system.
3. Remove the cooling fan motor and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD .

   3.5L Gasoline Turbocharged Direct Injection (GTDI), 3.7L and 5.0L engines

4. Release the clamp and disconnect the upper radiator hose from the radiator.
5. Release the clamp and disconnect the radiator-to-degas bottle hose from the radiator.
6. NOTE: The quick connect coupling illustrated is to show the spring clip release location only. The quick connect coupling on the hose may differ.

   Pull the lower radiator hose spring clip up until the end of the clip is in the detent on the quick connect coupling and disconnect the lower radiator hose from the radiator.

   Fig 1: Locating Lower Radiator Hose Spring Clip

   Courtesy of FORD MOTOR CO.
7. Disconnect the Mass Air Flow (MAF) sensor electrical connector.
8. NOTE: 6.2L shown in illustration, 3.5L GTDI  , 3.7L and 5.0L similar.

   Remove the 2 bolts and position the coolant expansion tank (6.2L) or the degas bottle (3.5L GTDI  , 3.7L and 5.0L) aside.

   Fig 2: Locating Coolant Expansion Tank Bolt

   Courtesy of FORD MOTOR CO.

   6.2L engines

9. Release the clamp and disconnect the upper radiator hose from the radiator.
10. Disconnect the overflow hose from the radiator.
11. Remove the spring clip and disconnect the lower radiator hose from the radiator.
12. Release the clamp and disconnect the power steering cooler hose from the power steering cooler.
    Fig 3: Locating Power Steering Cooler Hose Clamp

    Courtesy of FORD MOTOR CO.

    All engines

13. Disconnect the 3 RH and 2 LH air deflector-to-condenser pushpin retainers.

    3.5L GTDI engines

14. Turn the 4 quarter-turn retainers, detach the 8 pushpins and remove the lower air deflector.

    3.7L, 5.0L and 6.2L engines

15. Remove the 4 lower radiator air deflector-to-A/C condenser pushpins.

    All engines

16. Remove the bolt and the nut and disconnect the A/C condenser fittings.
    • Discard the gasket seals and the O-ring seals.
      Fig 4: Locating A/C Condenser Fittings Bolt And Nut

      Courtesy of FORD MOTOR CO.
17. Remove the transmission cooler tube secondary latches.
18. Using the Transmission Cooler Line Disconnect Tool, disconnect the transmission fluid cooler tubes.
    Fig 5: Disconnecting Transmission Fluid Cooler Tubes From Transmission Fluid Cooler Hoses Using Transmission Cooler Line Disconnect Tool

    Courtesy of FORD MOTOR CO.
19. Detach the wiring harness retainer.
    Fig 6: Locating Wiring Harness Retainer

    Courtesy of FORD MOTOR CO.
20. NOTE: Hoses with an auxiliary transmission fluid cooler shown in illustration, hoses without an auxiliary transmission fluid cooler similar.

    Disconnect the 2 transmission fluid cooler hoses from the radiator.

    3.5L GTDI , 3.7L and 5.0L engines

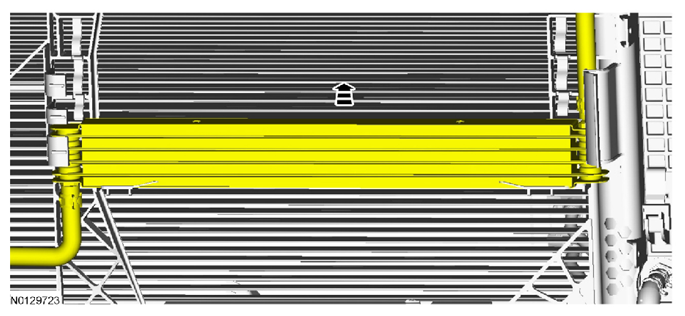

21. If equipped, detach the auxiliary transmission fluid cooler from the A/C condenser and position aside.

    6.2L engine

22. Using a suction device, siphon the power steering fluid from the power steering fluid reservoir.
23. Release the clamp and disconnect the power steering fluid cooler hose from the power steering fluid cooler.
    Fig 7: Locating Power Steering Cooler Hose Clamp

    Courtesy of FORD MOTOR CO.

    All engines

24. Remove the radiator/condenser core as an assembly.
25. Release the lock tabs and separate the radiator from the condenser core.
