Wiring Harness and Radiator Hose Retainers

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

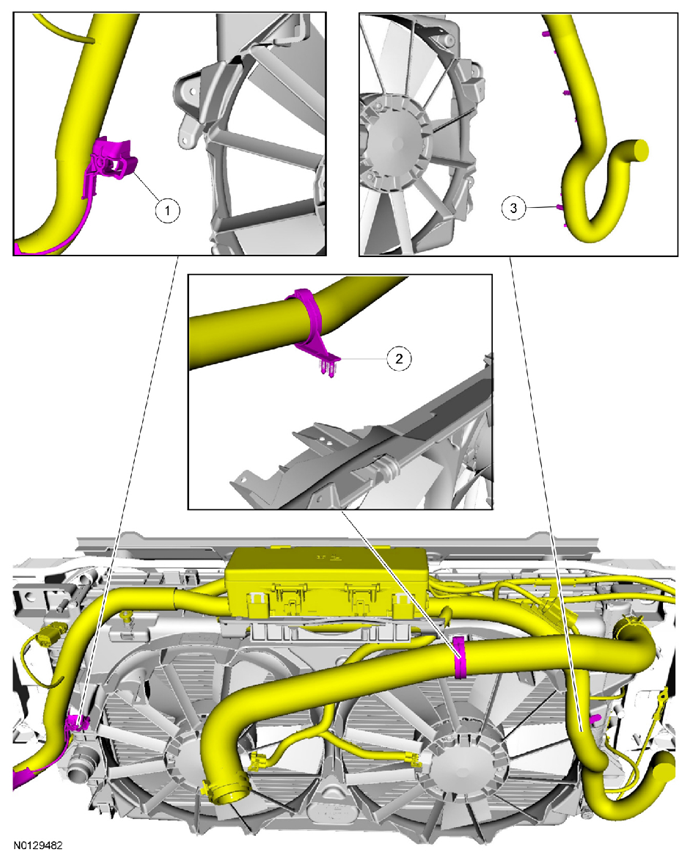

G08339962
Item Part Number Description
1 - Wiring harness retainer (part of 12A581)
2 8W287 Upper radiator hose retainer (6.2L only)
3 - Wiring harness retainer (part of 12A581) (3 required)
