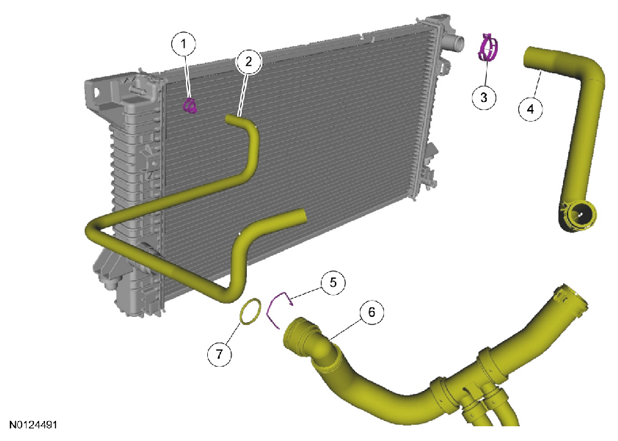

Radiator Hoses - 3.5L Gasoline Turbocharged Direct Injection (GTDI), 3.7L and 5.0L
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
15161 |
Radiator-to-degas bottle hose clamp |
| 2 |
8W005 |
Radiator-to-degas bottle hose |
| 3 |
15161 |
Upper radiator hose clamp |
| 4 |
8260 |
Upper radiator hose |
| 5 |
8D037 |
Lower radiator hose spring clip |
| 6 |
8286 |
Lower radiator hose |
| 7 |
8D038 |
Lower radiator hose O-ring seal |
