Coolant Inlet Pipe - 3.5L GTDI: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.
MATERIAL SPECIFICATION
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |
NOTE:

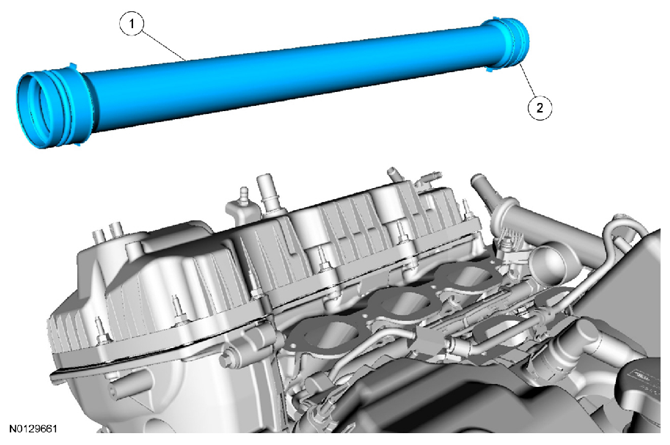

Intake manifold removed for clarity.
| Item | Part Number | Description |
|---|---|---|
| 1 | 8A505 | Coolant inlet pipe |
| 2 | 8527 | Coolant inlet pipe O-ring seal |
