Coolant Crossover Manifold Assembly - 3.5L GTDI: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

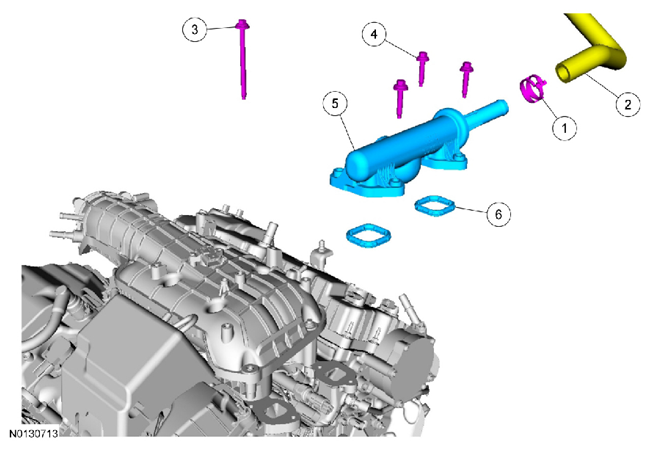

| Item | Part Number | Description |
|---|---|---|
| 1 | W527362 | Heater hose clamp |
| 2 | 18472 | Heater hose |
| 3 | W714988 | Intake manifold bolt |
| 4 | W503279 | Coolant crossover manifold assembly bolt (3 required) |
| 5 | 8C368 | Coolant crossover manifold assembly |
| 6 | 9439 | Coolant crossover manifold assembly gasket (2 required) |
