Steering Column Shroud - Floor Shift: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

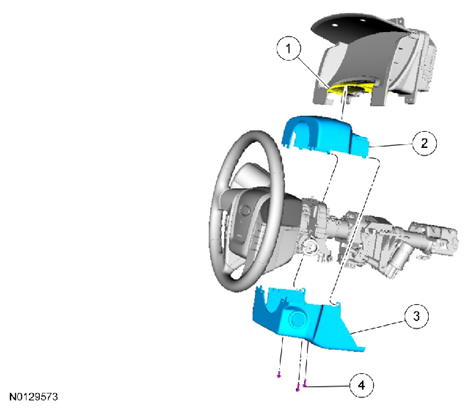

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Instrument cluster trim (part of 15044D70) |
| 2 | 3530A | Upper steering column shroud |
| 3 | 3530B | Lower steering column shroud |
| 4 | W710485 | Lower steering column shroud screw (3 required) |
