Steering Column Motor - Tilt: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column. For additional information, refer to STEERING COLUMN .
Place the steering column upside down on a workbench.
Detach the electrical connector pin-type retainer from the steering column.

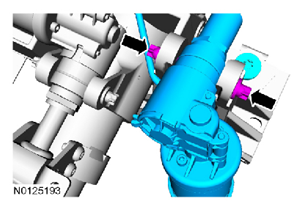

Fig 1: Locating Electrical Connector Pin-Type Retainer On Steering Column
Courtesy of FORD MOTOR CO.
Remove the 2 steering column motor screws.
Remove the 2 steering column motor trunnion nut capture bracket screws and the trunnion nut capture bracket.

Fig 2: Locating Steering Column Motor Trunnion Nut
Courtesy of FORD MOTOR CO.
Remove the steering column motor.
