Brake Vacuum Pump: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

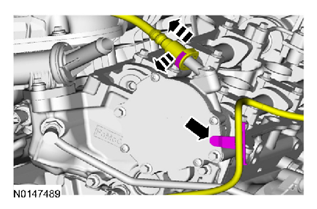

Remove the RH front fender inner splash shield. Refer to FRONT END BODY PANELS .
NOTE: Do not use excessive force when removing the vacuum pump or the vacuum pump oil tube may be dilodged from the pump causing internal oil seal damage to the pump. If the oil tube becomes dislodged from the pump, a new vacuum pump must be installed.

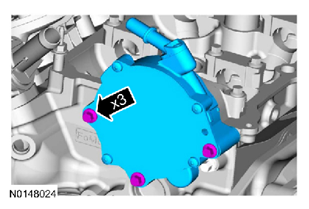

NOTE: The upper/inboard vacuum pump bolt will remain in the vacuum pump housing when removing the vacuum pump.
