Brake Vacuum Pump: Installation
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: Make sure the oil tube filter screen is free of contaminants prior to the installation of the pump or damage to components may occur.
Visual check. Install a new gasket as necessary.
-
NOTE: If the brake vacuum pump is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Failure to follow this procedure can cause future oil leakage.NOTE: Make sure the mating surfaces are clean and free of foreign material.
Apply a bead of the specified diameter from the specified tube.
-

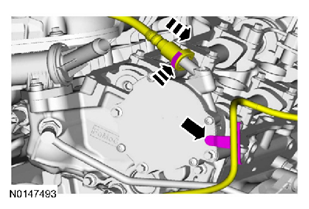

NOTE: Manually align the brake vacuum pump drive key with the camshaft slot before installation.
Visual check.
