Airbag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (Illustration 1 of 2)
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

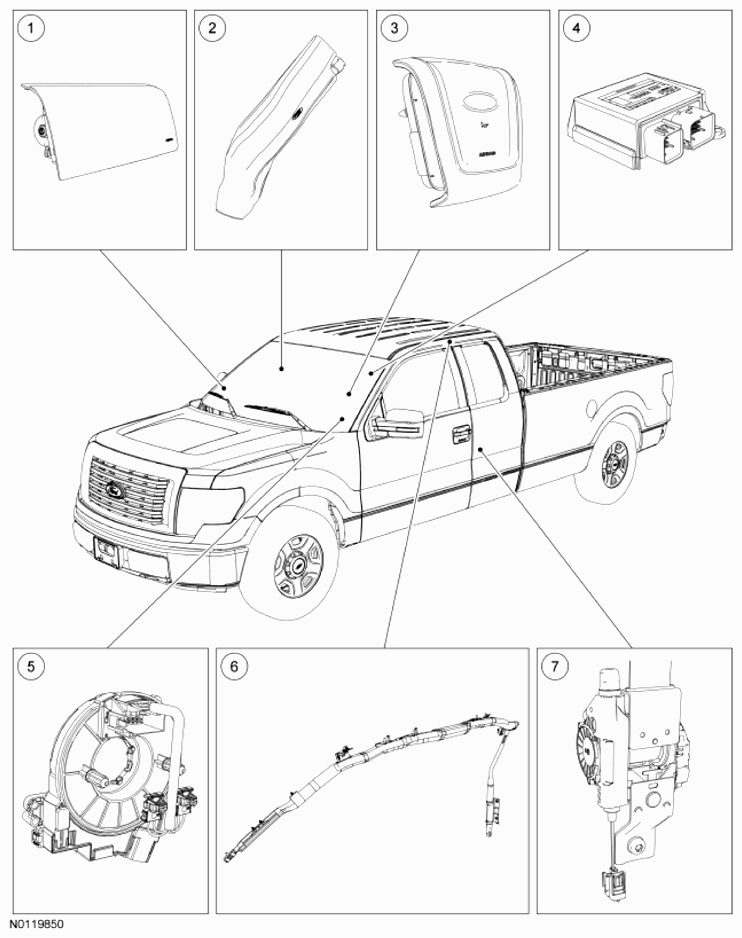

Fig 1: Identifying Airbag And Safety Belt Pretensioner Supplemental Restraint System Components (1 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 044A74 | Passenger airbag |
| 2 | 611D11/611D10 | Driver/passenger seat side airbag |
| 3 | 043B13 | Driver airbag |
| 4 | 14B321 | RCM |
| 5 | 14A664 | Clockspring |
| 6 | 042D95/042D94 | Driver/passenger Safety Canopy® |
| 7 | 611B09/611B08 | Driver/passenger safety belt retractor pretensioner assembly |
