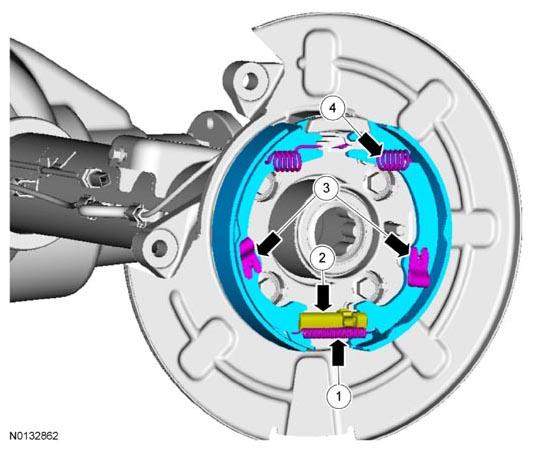

Parking Brake Shoes: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

NOTE: One parking brake shoe kit contains the linings required for both the LH and RH side.

Release the parking brake cable tension. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .
Remove the rear brake disc. For additional information, refer to REAR DISC BRAKE .
