Parking Brake Cable - Rear, RH: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Release the parking brake cable tension. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .

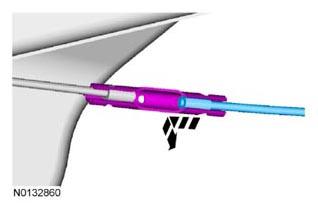

  2. G07958143

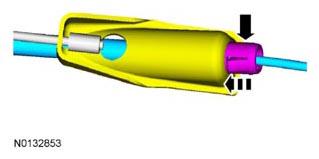

  3. G07958144
  4. To install, tighten to 15 Nm (133 lb-in).

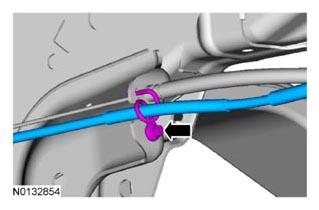

    G07958145

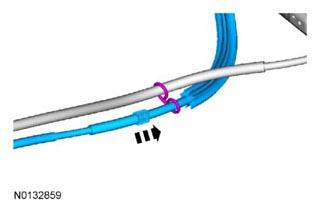

  5. G07958146

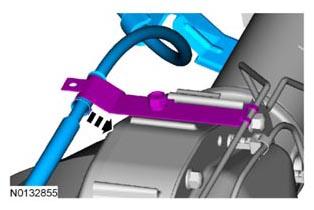

  6. G07958147
  7. To install, tighten to 30 Nm (22 lb-ft).

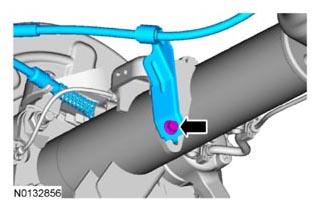

    G07958148

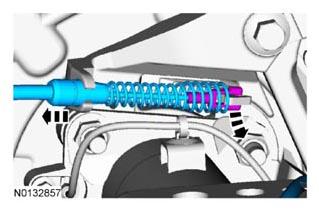

  8. G07958149
