Driveshaft - Front: Removal

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position the vehicle on a hoist. Refer to JACKING & LIFTING .
  2. If equipped.
    G08335135

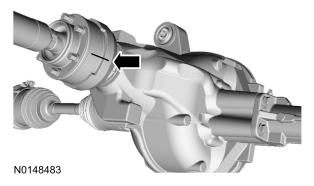

  3. G08348930

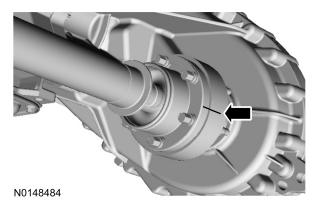

  4. G08348931
  5. NOTE: If new bolts are not available, the old bolts and washers can be reused if they are not damaged. When reusing old bolts, the threads need to be cleaned and Loctite has to be used on the threads of each bolt.
    • To install, tighten to 55 Nm (41 lb-ft).

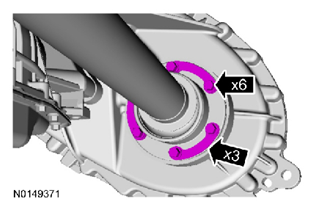

      G08335136
  6. NOTE: If new bolts are not available, the old bolts and washers can be reused if they are not damaged. When reusing old bolts, the threads need to be cleaned and Loctite has to be used on the threads of each bolt.
    • To install, tighten to 55 Nm (41 lb-ft).

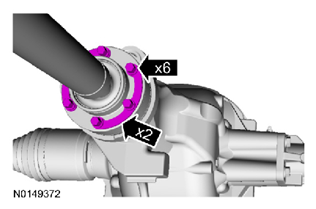

      G08335137
    • To install, tighten to 55 Nm (41 lb-ft).

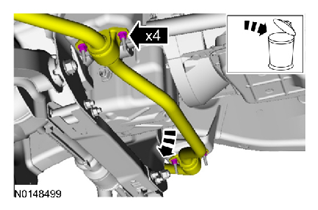

      G08335138

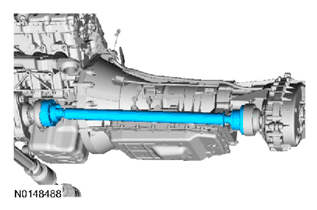

  7. G08335139
