Drive Pinion Flange and Seal: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL DESCRIPTION
| 2 Jaw Puller 205-D072 (D97L-4221-A) or equivalent |
|
| Holding Fixture, Drive Pinion Flange 205-126 (T78P-4851-A) |
|
| Installer, Drive Pinion Flange 205-002 (TOOL-4858-E) |
|
| Installer, Drive Pinion Oil Seal 205-208 (T83P-4676-A) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 80W-90 Premium Rear Axle Lubricant (US); Motorcraft® SAE 80W-90 Premium Axle Lubricant (Canada) XY-80W90-QL (US); CXY-80W90-1L (Canada) |
WSP-M2C197-A |

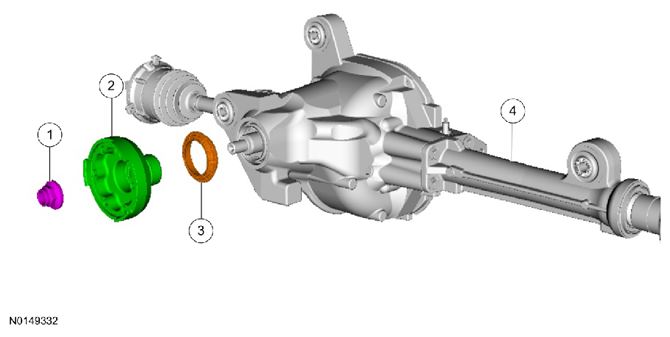

| Item | Part Number | Description |
|---|---|---|
| 1 | 389546 | Pinion nut and washer |
| 2 | 4858 | Pinion flange |
| 3 | 3N134 | Drive pinion oil seal |
| 4 | 3C202 | Axle housing |
