Differential Bearings: Installation

WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the Drive Pinion Bearing Cup Installer and the inner and outer drive pinion bearing cups in their respective bores.
    1. Place the Rear Axle Pinion Bearing Cup Installer on the outer drive pinion bearing cup.
    2. Place the Rear Axle Pinion Bearing Cup Installer on the inner drive pinion bearing cup.
    3. Install the Drive Pinion Bearing Cup Installer.
      Fig 1: Positioning Drive Pinion Bearing Cup Installer
      G09538075Courtesy of FORD MOTOR CO.
  2. Tighten the Drive Pinion Bearing Cup Installer to fully seat the 2 differential drive pinion bearing cups.
    Fig 2: Locating Drive Pinion Bearing Cup Screw
    G06125141Courtesy of FORD MOTOR CO.
  3. NOTE: If a feeler gauge of the specification shown can be inserted between a cup and the bottom of its bore at any point around the cup, the cup is not correctly seated.

    Make sure the differential pinion bearing cups are correctly seated.

    Fig 3: Checking Clearance Between Cup And Bore
    G06125142Courtesy of FORD MOTOR CO.
  4. NOTE: Use the same drive pinion bearings and the drive pinion bearing adjustment shim from the drive pinion bearing adjustment shim selection procedure for final assembly or damage to the component may occur.
    NOTE: Install new drive pinion bearings without any additional lubricant since the anti-rust oil provides adequate lubricant without upsetting the drive pinion bearing preload settings.

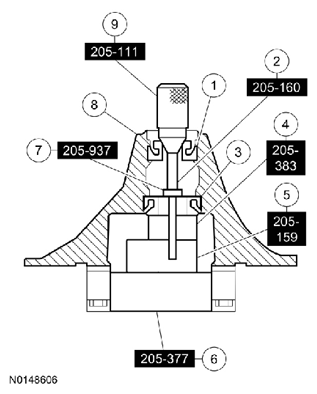

    Install the new drive pinion bearings and Adapters as shown.

    Item Part Number Description
    1 4621 Outer pinion bearing
    2 205-160 Adapter for 205-S127
    3 4630 Inner pinion bearing
    4 205-383 Depth Gauge/Aligner, Drive Pinion
    5 205-159 Adapter for 205-S127
    6 205-377 Drive Pinion Gauge Tube
    7 205-937 Depth Gauge/Aligner, Drive Pinion
    8 4010 Rear axle housing outer (front) pinion bearing
    9 205-111 Adapter for 205-S127
    Fig 4: Installing Drive Pinion Bearings And Adapters
    G08335444Courtesy of FORD MOTOR CO.
  5. NOTE: This step duplicates final drive pinion bearing preload.

    Tighten the Adapter.

    • Tighten to 2.2 Nm (20 lb-in).
      Fig 5: Checking Differential Drive Pinion Bearing Preload
      G06125144Courtesy of FORD MOTOR CO.
  6. NOTE: The Adapter must be offset to obtain an accurate reading.

    Rotate the Adapter several half-turns to make sure of correct seating of the drive pinion bearings.

    Fig 6: Rotating Adapter Position
    G06125145Courtesy of FORD MOTOR CO.
  7. Install the Drive Pinion Gauge Tube.
    1. Position the Drive Pinion Gauge Tube.
    2. Install the 2 differential bearing caps.
    3. Install the 4 differential bearing cap bolts.
      • Tighten to 105 Nm (77 lb-ft).
        Fig 7: Installing Differential Bearing Cap Bolts
        G06167040Courtesy of FORD MOTOR CO.
  8. NOTE: Drive pinion bearing adjustment shims must be flat and clean.
    NOTE: A slight drag should be felt for correct drive pinion bearing adjustment shim selection. Do not attempt to force the drive pinion bearing adjustment shim between the gauge block and the gauge tube. This will minimize selection of a drive pinion bearing adjustment shim thicker than required, which results in a deep tooth contact in the final assembly of integral axle assemblies.

    Use a drive pinion bearing adjustment shim as a gauge for drive pinion bearing adjustment shim selection.

    • After the correct drive pinion bearing adjustment shim thickness has been determined, remove the Adapters.
      Fig 8: Checking Pinion Bearing Adjustment Shim
      G06142851Courtesy of FORD MOTOR CO.
  9. Using the Bearing/Oil Seal Plate and Drive Pinion Bearing Cone Installer, press the drive pinion bearing and selected drive pinion bearing adjustment shim until they are firmly seated on the pinion gear.
    Fig 9: Pressing Bearing/Oil Seal Plate And Drive Pinion Bearing Cone
    G06125149Courtesy of FORD MOTOR CO.

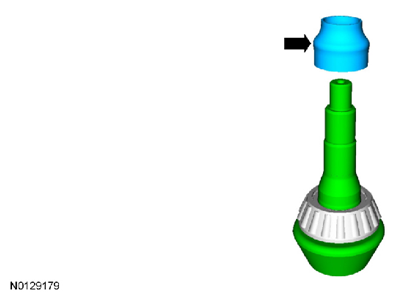

  10. Place a new drive pinion collapsible spacer on the pinion gear against the pinion gear shoulder.
    G08335439
  11. Install the outer drive pinion bearing and drive pinion shaft oil slinger.
    Fig 10: Locating Outer Drive Pinion Bearing And Drive Pinion Shaft Oil Slinger
    G06125151Courtesy of FORD MOTOR CO.
  12. Lubricate the pinion flange splines with grease.
  13. Install the pinion gear in the pinion gear bore from inside the axle housing.
    Fig 11: Installing Pinion Gear In Pinion Gear Bore From Inside Axle Housing
    G06125222Courtesy of FORD MOTOR CO.
  14. Using the Differential Carrier Bearing Installer, press the LH and RH differential bearing on the differential assembly.
    Fig 12: Installing Differential Bearings (LH And RH)
    G06125158Courtesy of FORD MOTOR CO.
  15. Install the differential carrier. Refer to DIFFERENTIAL CARRIER .
  16. Install the drive pinion seal and flange. Refer to DRIVE PINION FLANGE AND DRIVE PINION SEAL .
