Starter Motor - 3.5L GTDI, 3.7L: Notes
WARNING: This page is about a different car, the 2014 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For information on Ford Color Coded Illustrations refer to COLOR-CODING - FORD
.

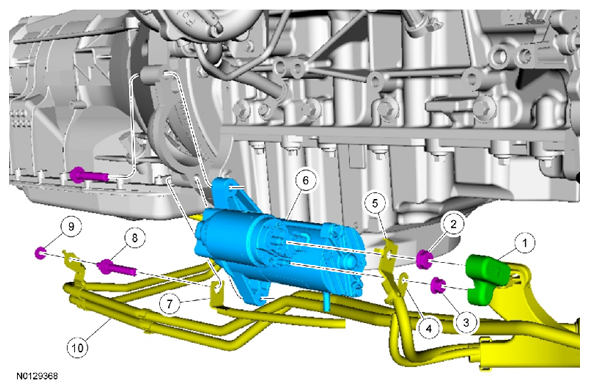

| Item | Part Number | Description |
|---|---|---|
| 1 | 11N087 | Starter solenoid terminal cover |
| 2 | W706414 | Starter solenoid B+ terminal nut - 12 Nm (106 lb-in) |
| 3 | W705790 | Starter solenoid S-terminal nut - 5 Nm (44 lb-in) |
| 4 | 14463 | Starter solenoid S-terminal eyelet |
| 5 | 14463 | Starter solenoid B+ terminal eyelet |
| 6 | 11002 | Starter motor |
| 7 | 14463 | Starter motor ground cable eyelet |
| 8 | W714290 | Starter motor mounting stud bolts (2 required) - 48 Nm (35 lb-ft) |
| 9 | W709450 | Transmission fluid cooler tube bracket nut - 12 Nm (106 lb-in) |
| 10 | 7R081 | Transmission fluid cooler inlet and outlet tubes |
