F350/450 and 550 Dual Rear Wheels (DRW): Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

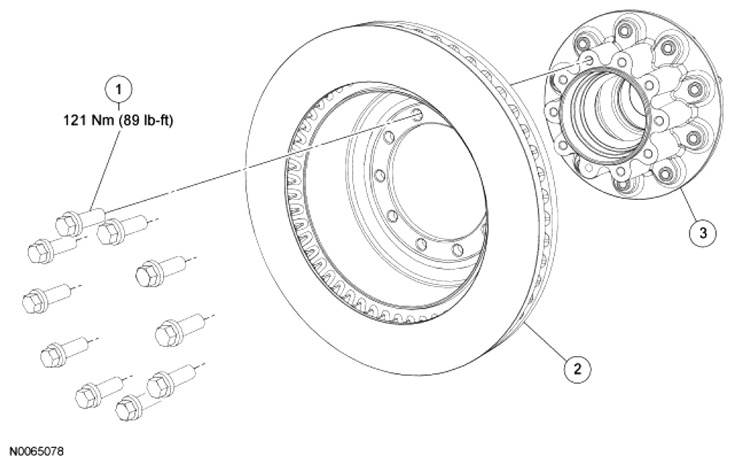

Fig 1: Brake Disc Replacement Components With Torque Specifications - F-350/450 And 550 Dual Rear Wheels (DRW)

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	1107	Brake disc-to-wheel hub bolt (10 required)
2	2C026	Brake disc
3	1109	Wheel bearing and hub assembly
