F250/350 Vehicles

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

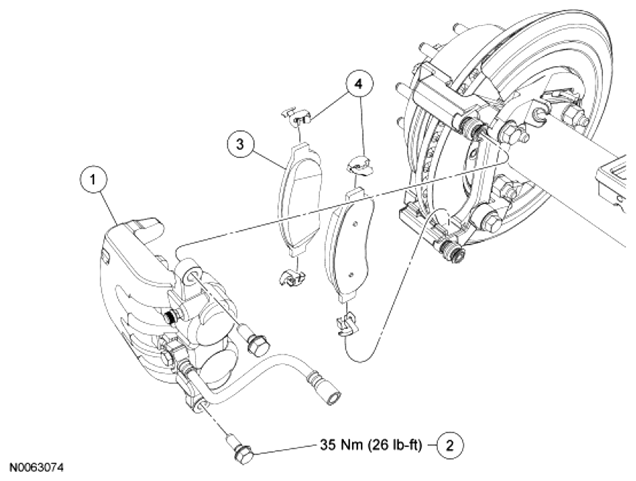

Fig 1: Brake Pads Replacement Components With Torque Specifications - F-250/350 Vehicles

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	2552 RH/2553 LH	Brake caliper
2	2386	Brake caliper bolt (2 required)
3	2200	Brake pad (2 required)
4	-	Brake pad retraction clips (4 required) (part of 2200)
