Caliper Brake Flexible Hose

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

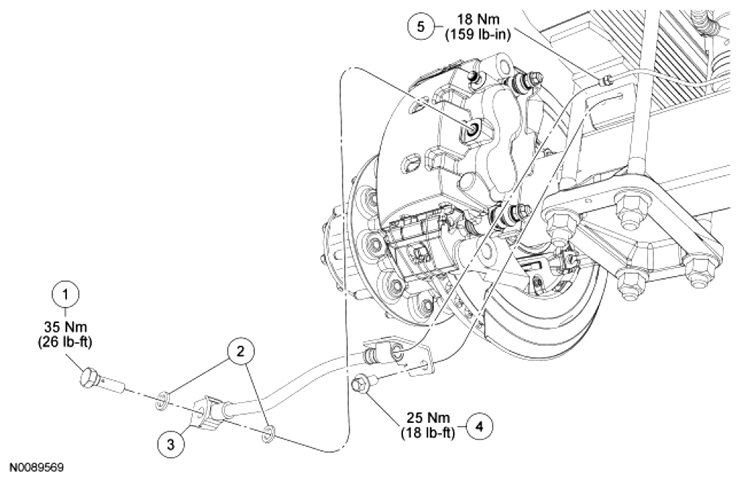

Fig 1: Caliper Brake Flexible Hose Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	385116	Brake caliper flow bolt
2	2149	Copper washers (2 required)
3	2268	Caliper brake flexible hose
4	N605785	Brake flexible hose bracket bolt
5	-	Brake tube fitting
