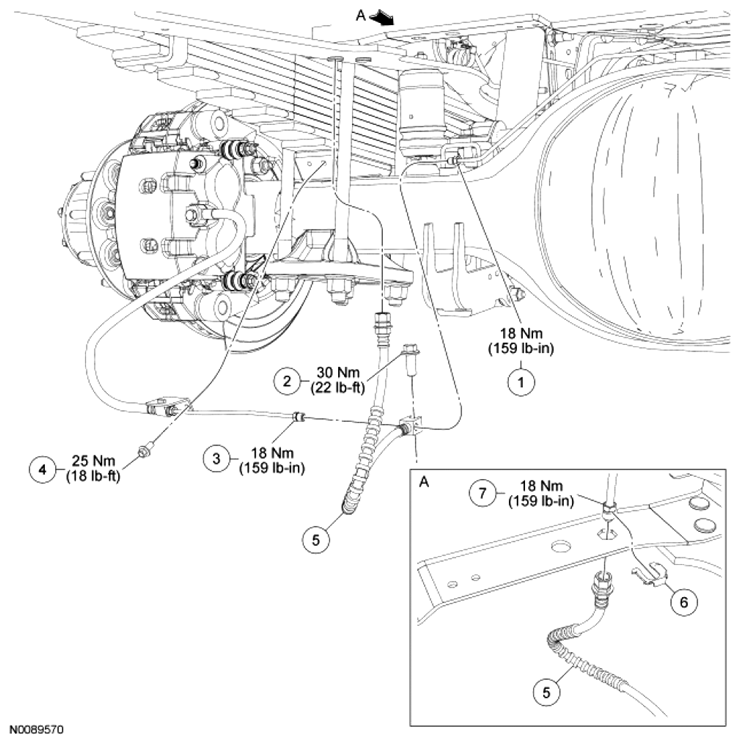

Axle Brake Flexible Hose: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
Inboard brake tube fitting |
| 2 |
N605814 |
Brake flexible hose bolt |
| 3 |
- |
Outboard brake tube fitting |
| 4 |
N605785 |
Brake flexible hose bracket bolt |
| 5 |
2282 |
Axle brake flexible hose |
| 6 |
2814A |
Retaining clip |
| 7 |
- |
Brake tube fitting |
