F250/350 Vehicles

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

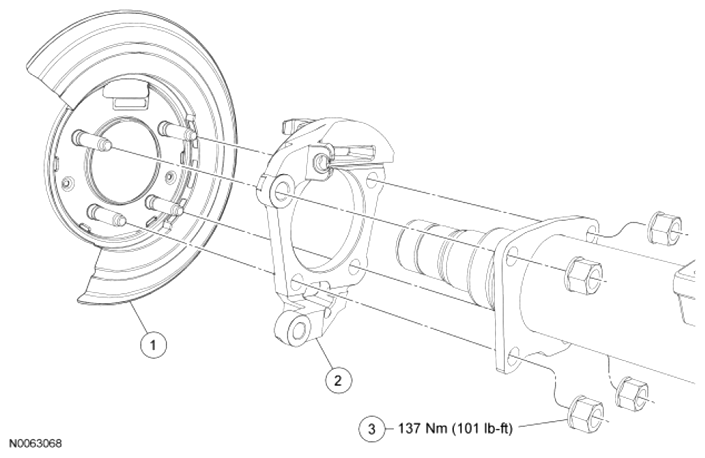

Fig 1: Brake Caliper Support Bracket With Torque Specifications - F250/350 Vehicles
G07479069Courtesy of FORD MOTOR CO.
Item Part Number Description
1 2K004 Brake disc shield
2 2B636 Brake caliper support bracket
3 W705053 Brake caliper support nut (4 required)
